604-15-1F18, 10 Watts, Hz-18.0 GHz

Description:

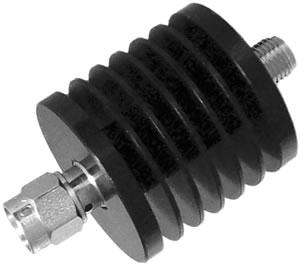

MECA’s 604-15-1F18 SMA (Male/Female) fixed attenuator features a frequency range of Hz-18.0 GHz, an average power rating of 10 watts and is available from STOCK in 1 - 40 dB values. ROHS Compliant. To order, please specify an attenuation value in place of dB. EXAMPLE: 604-15-1F18 for 15 dB.

Specifying Tip:
For best results when selecting an RF attenuator for a given connector style, make sure to consider the amount of power being absorbed and the acceptable level of reflection (VSWR) that can be tolerated over the operating frequency range.

Notes:
1. Average power @ +25°C derated linearly to 6.25 Watts @ +85°C
2. 5 µSec pulse, 0.05% duty cycle.
3. Impedance (Nominal): 50 Ohms.
