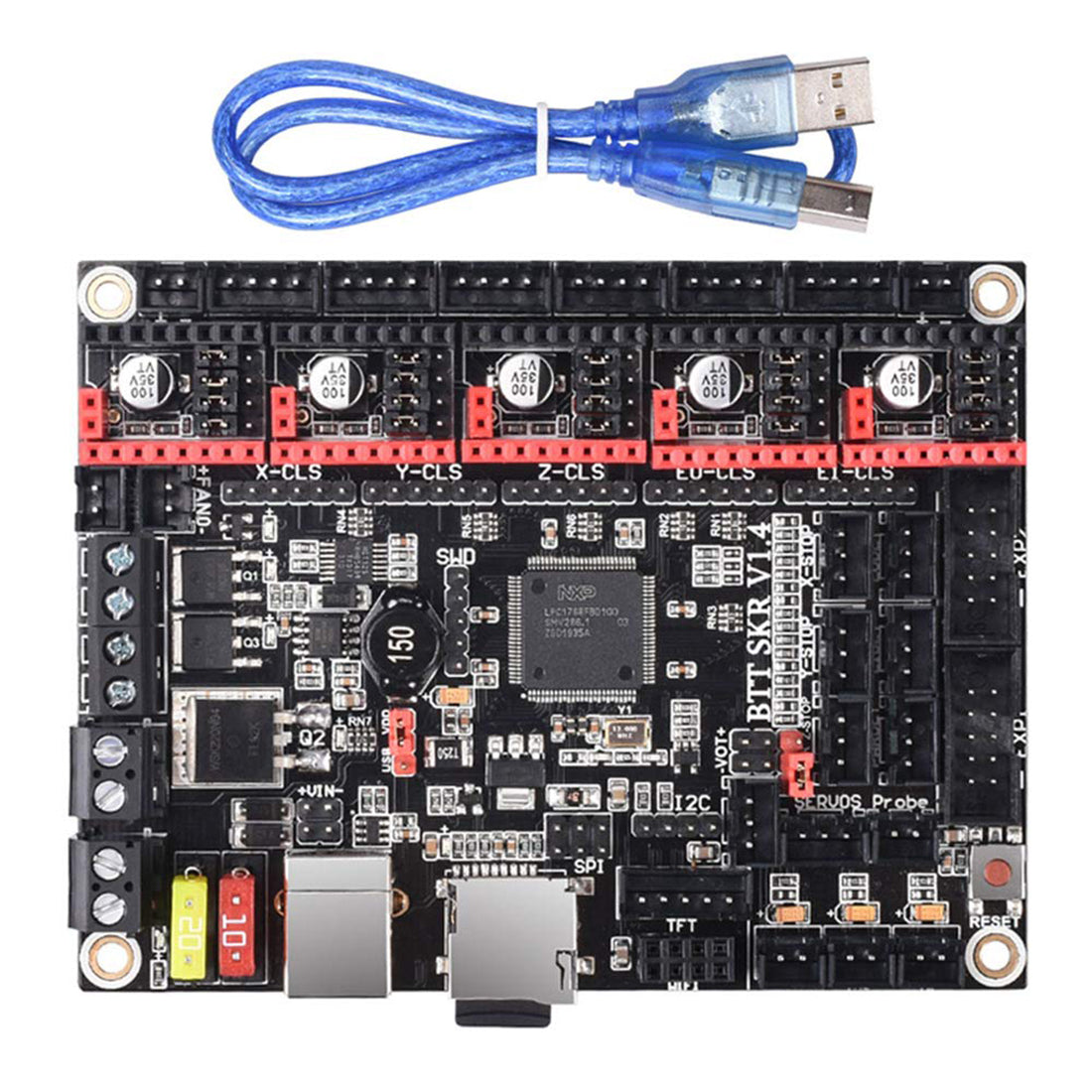

SKR V1.4 Turbo 32-Bit Control Board For CR10/CR10SEnder3/Ender 3 Pro/Ender 5/Anet A6/Anet A8/Tronxy X5S (Corexy)/Anycubic Kossel

SKR V1.4 Turbo 32-bit Control Board for CR10/CR10SEnder3/Ender 3 pro/Ender 5/Anet A6/Anet A8/Tronxy X5S (corexy)/Anycubic kossel/BIQU B1/Artillery Sidewinder X1

 Features:

 .Main control chip LPC1768 series Cortex-M3 main control chip, 32-bit main frequency and 120 MHz ARM level, performance has been significantly improved

 .Power supply: use dedicated M6130 power chip, support 12-24V power input

 .Working mode SPI and UART working mode controlled by TMC driver

 .There is also a DIAG pin, no complicated wiring process, just pull out the jumper cover to use

 .Dual Z Axis: Dual Z axis interface, eliminating the problem of external drive expansion module

 Specifications:

 .Color: As Shown

 .Material: PCB

 .Product Dimensions: 11 x 8.5cm

 .Product Weight: 150g

 .Package Dimensions: 5.39 x 5.04 x 1.38cm

 .Package Weight: 170g

 .Packing: Carton Box

 Package Content:

 .1 x Control Board

 Packing list  .1 x Control Board
