TEC SPECS
| Model | 2000R Mini |
| Input Voltage | DC12V/48V |
| Operating Current | 20-50A/5-14A |
| Cooling Capacity | 6500/7500BTU |
| Air Flow Rate | 250 CFM |
| Rated Power | 600W/670W |
| Refrigerant | R134a 500g |
| Power Consumption | Eco mode: 250-300W Turbo mode: 400-650W |
| Noise Level | Eco mode: 45dB Boost mode:58dB |
| Roof Unit Dimension | W26.4”*L26”*H6.5” |
| ADB Dimension | W13.8”*L11”*H4.3” |
| Weight | 61lb |
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (6AWG for 12V, 12AWG for 48V)
- User manual
* One-year limited warranty

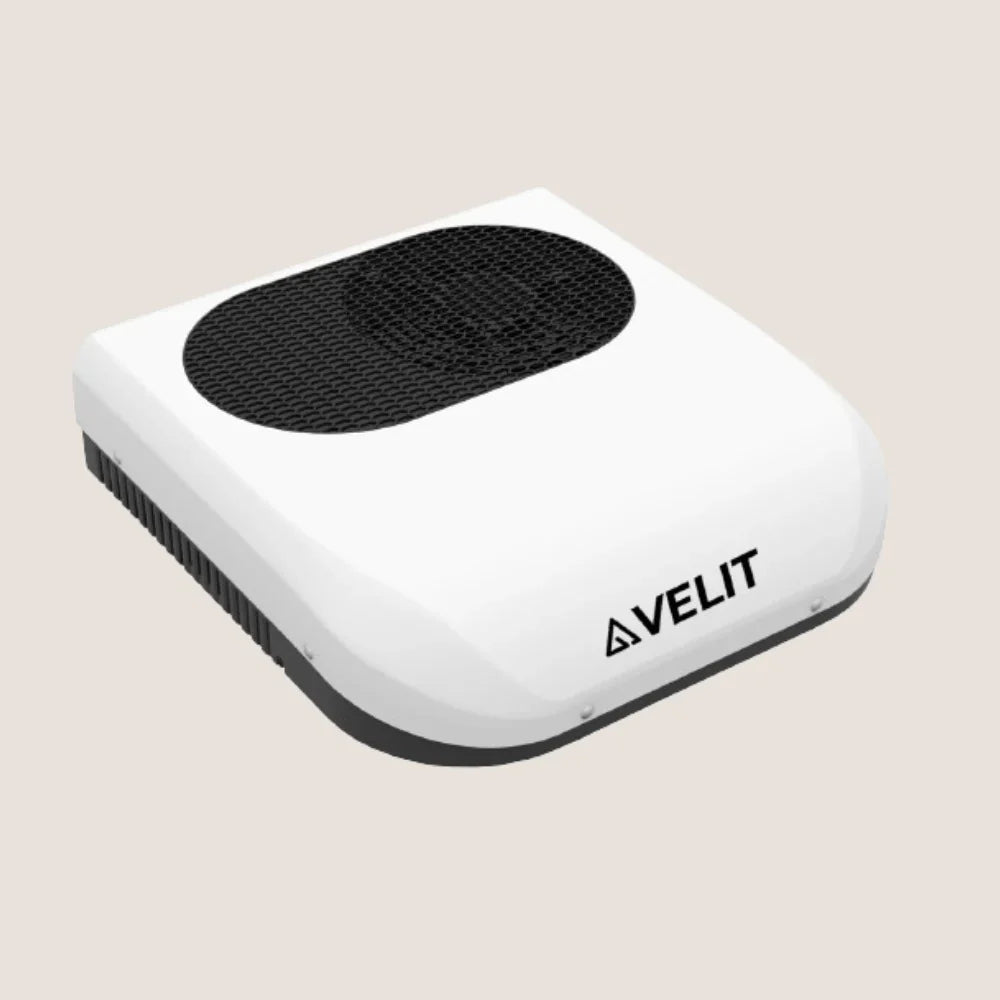

This super-efficient DC-powered rooftop air conditioner is one of the smallest rooftop air conditioners ever built. With the twin-cylinder rotor compressor, the Velit 2000R Mini delivers 7500 BTU of cooling capacity and draws as low as 20A (at 12V). It is also available for a 48Volt system. The unit can be directly powered by most vehicle alternators without the need for a second battery. It also has a slim profile with only 6.5” of clearance and can easily fit in the standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
